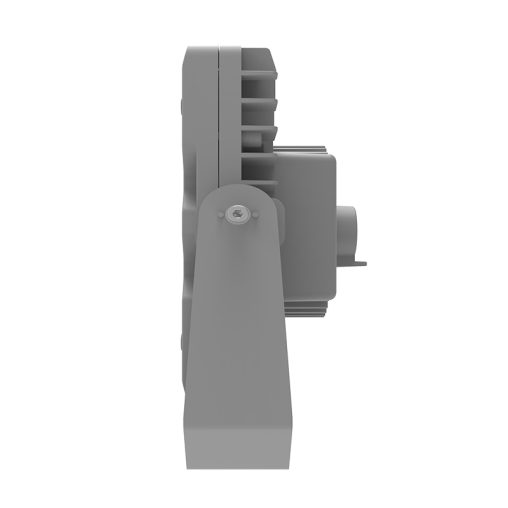

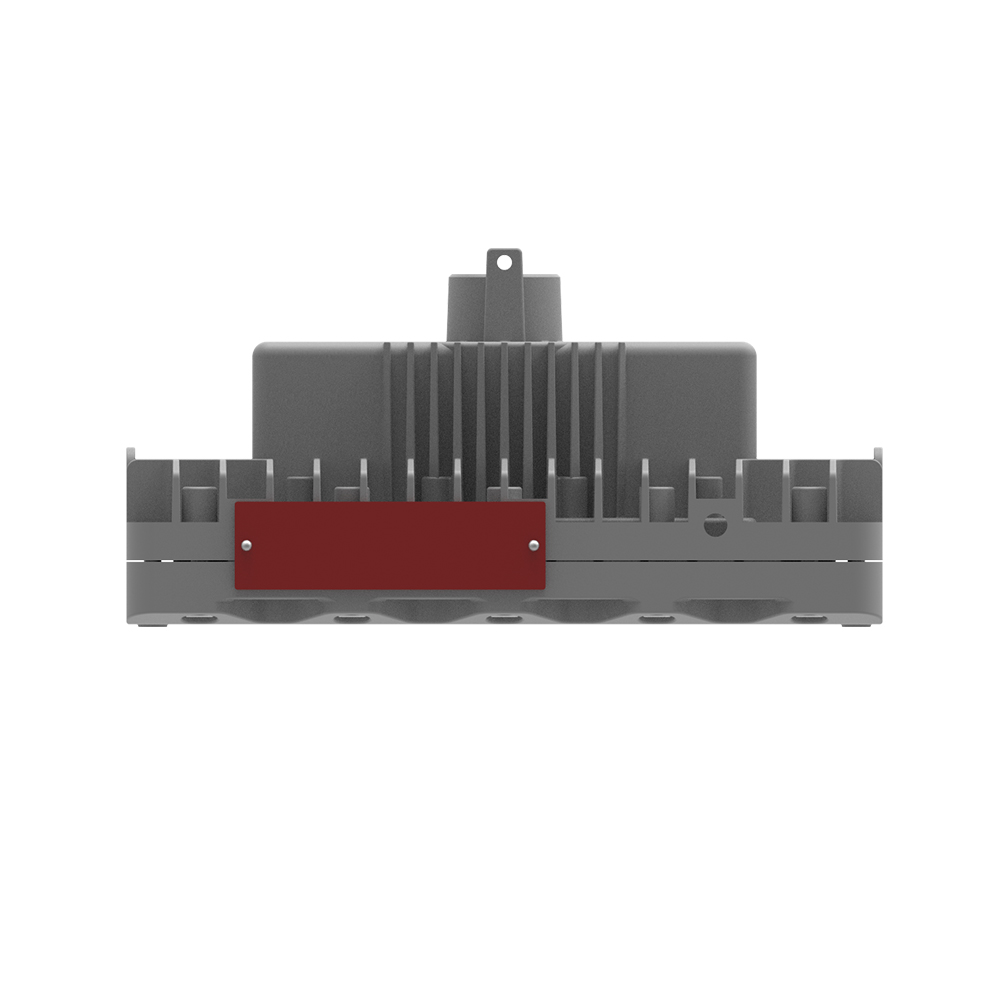

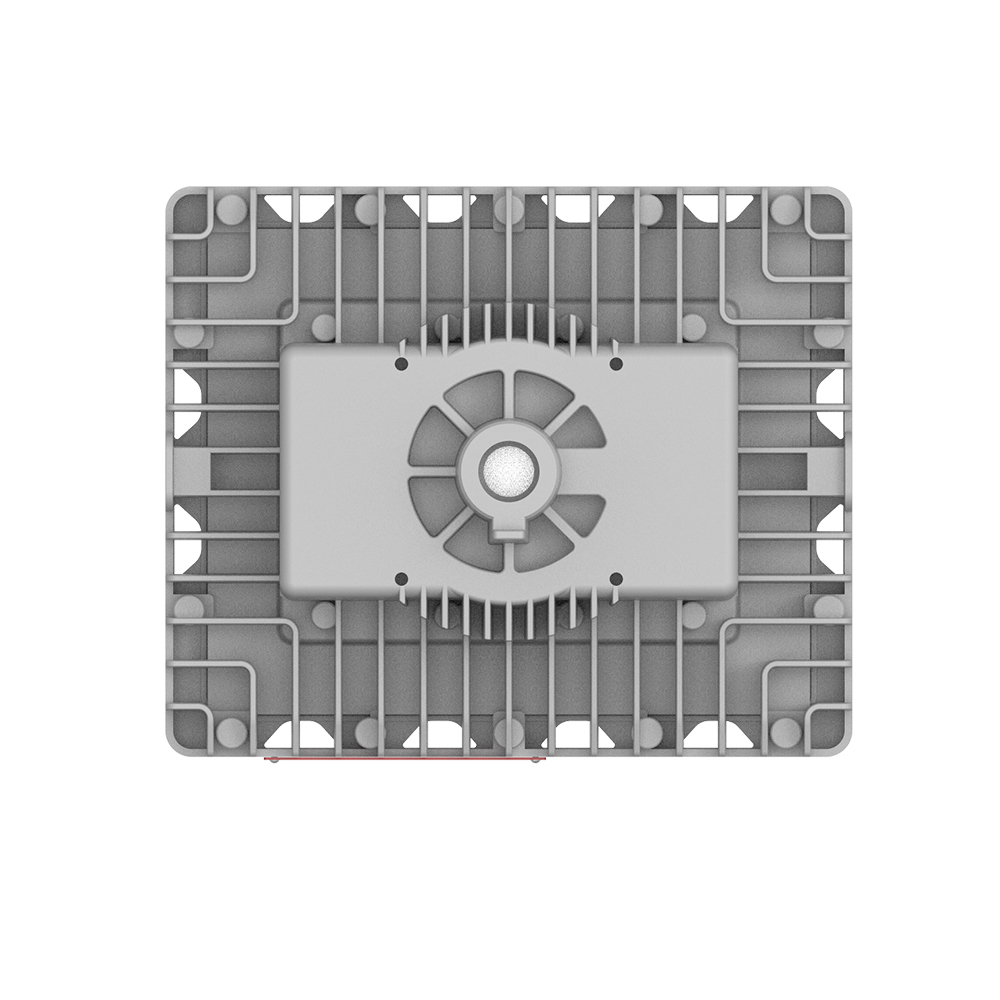

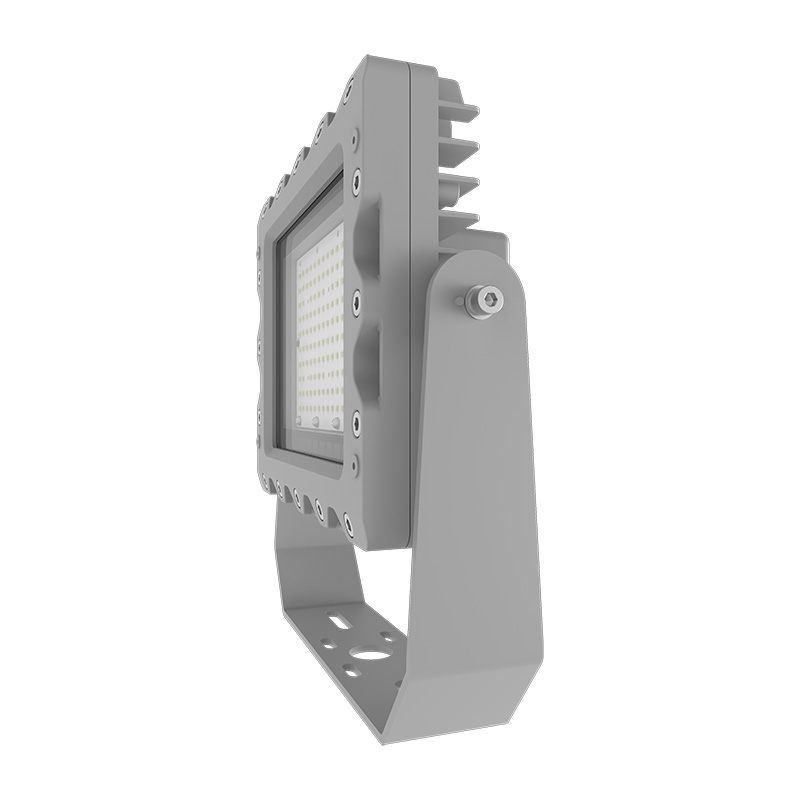

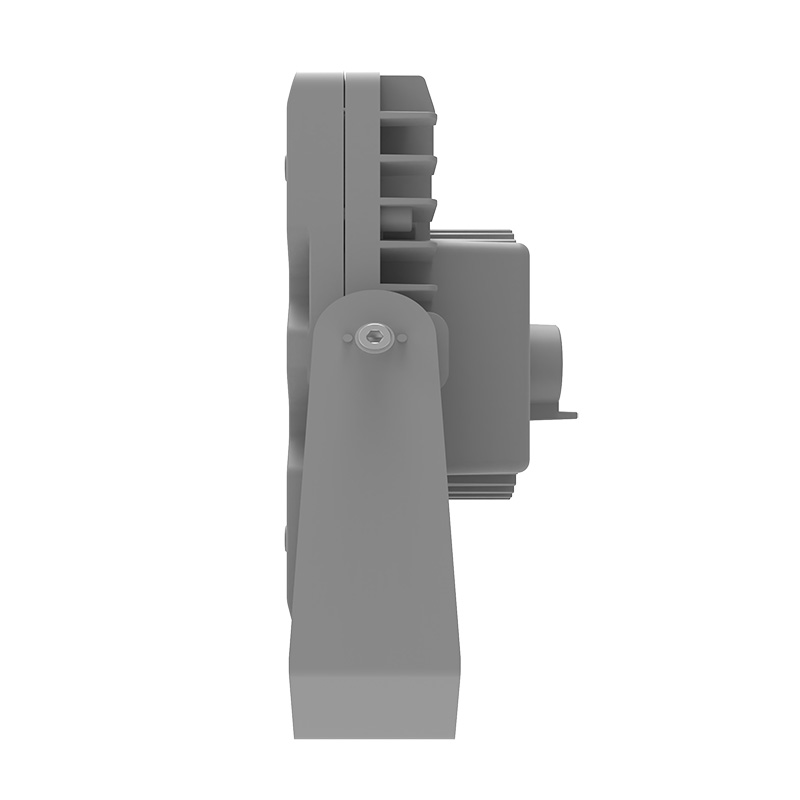

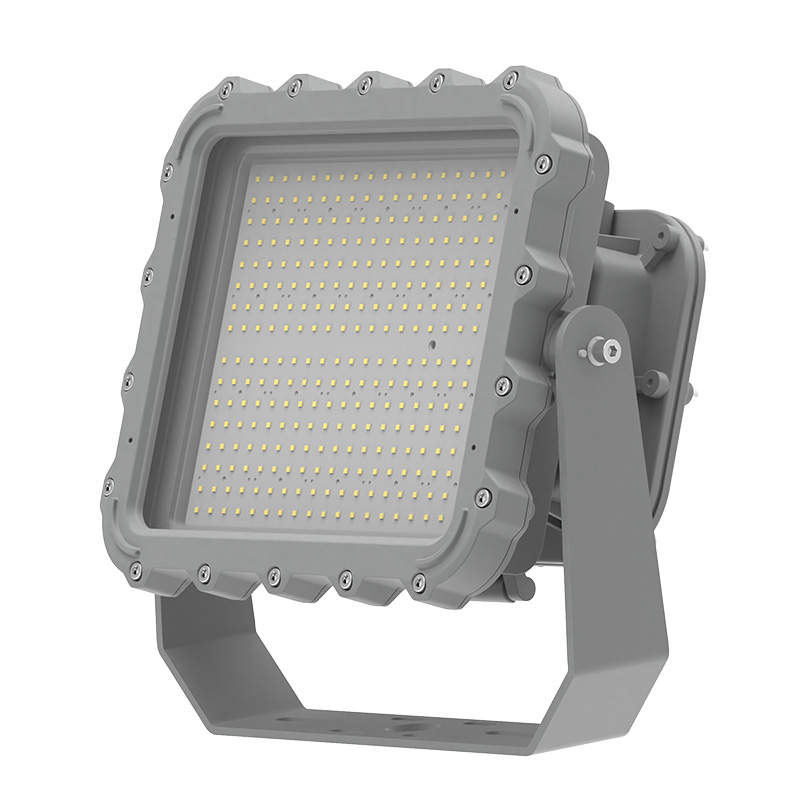

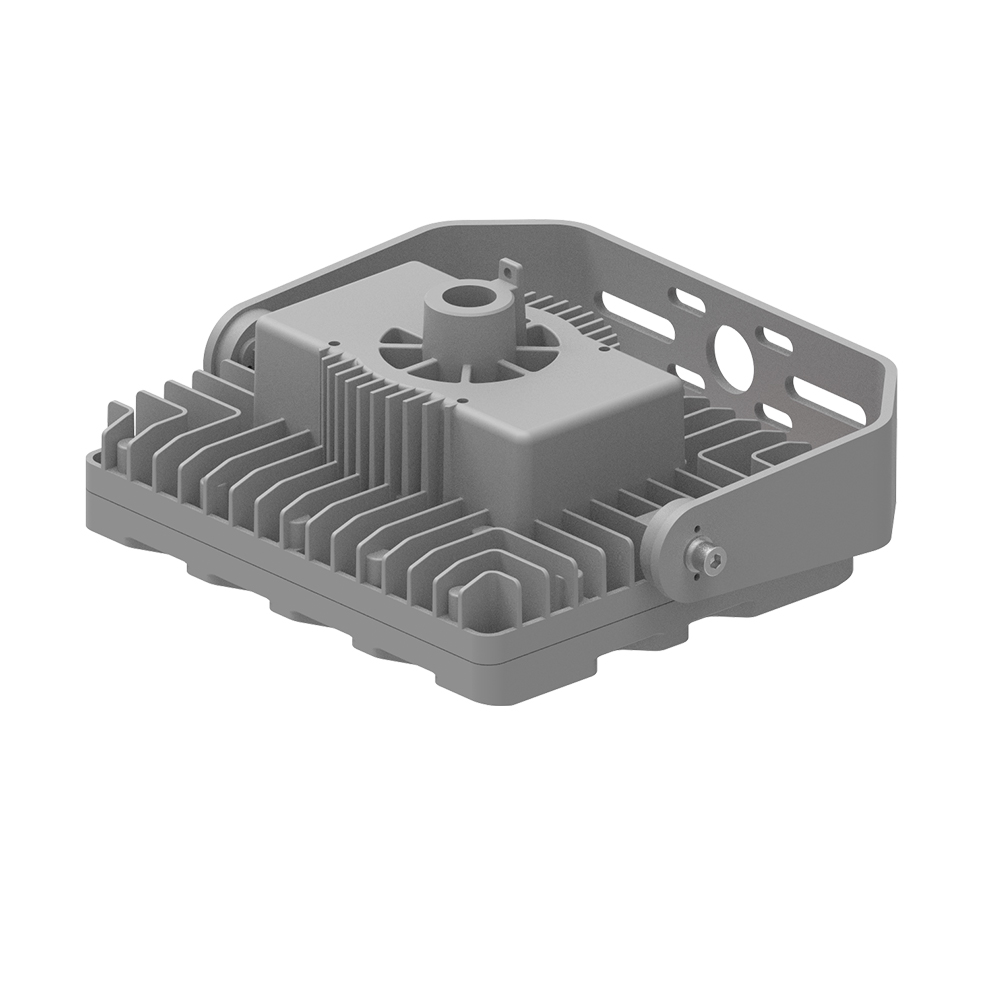

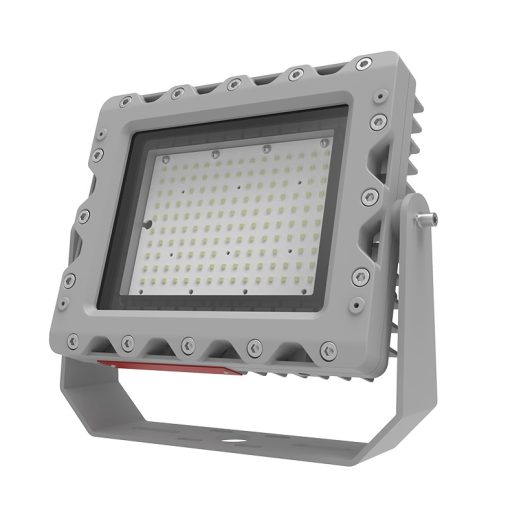

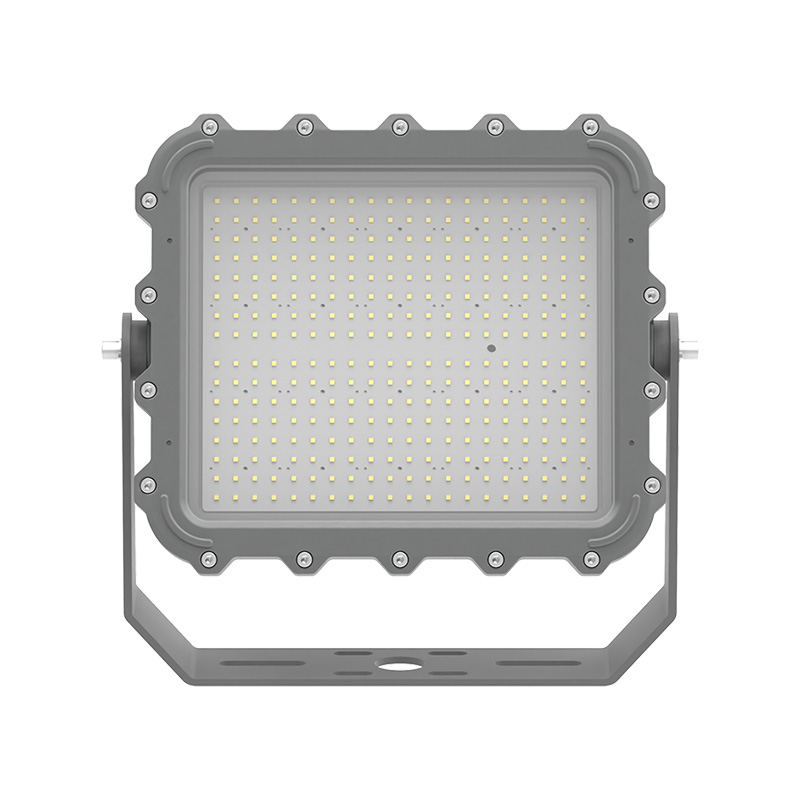

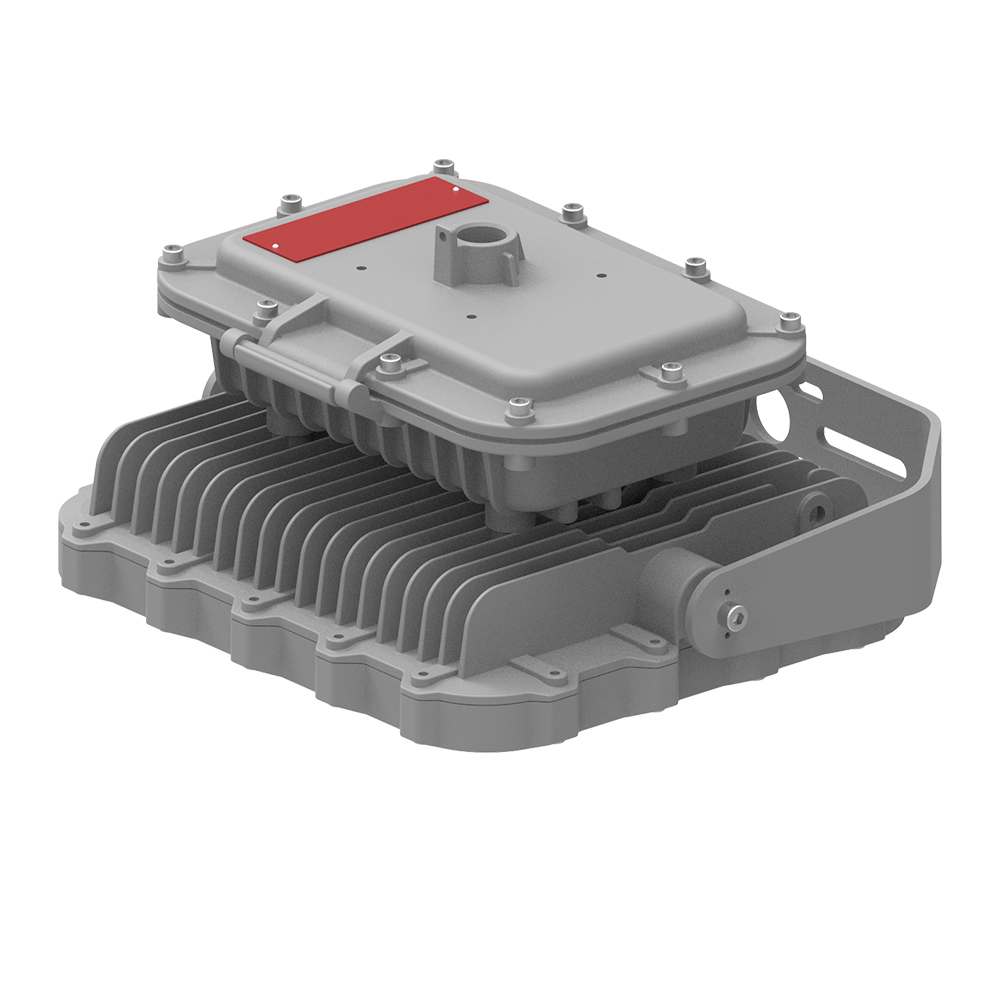

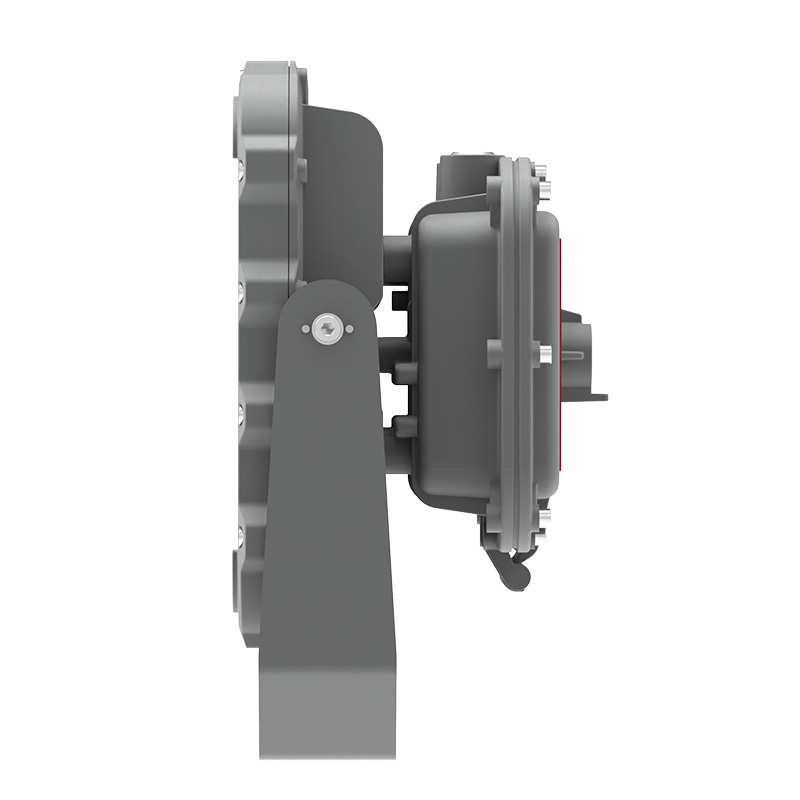

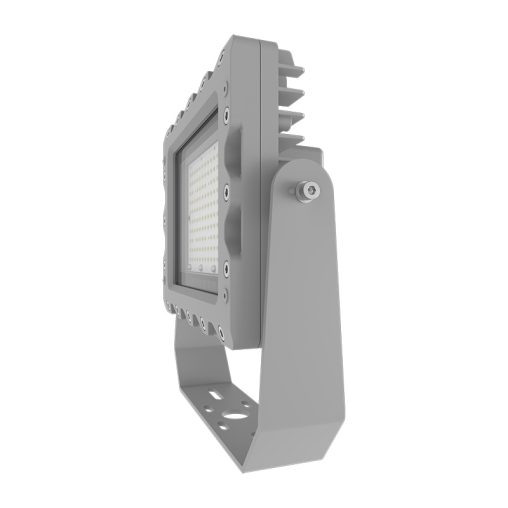

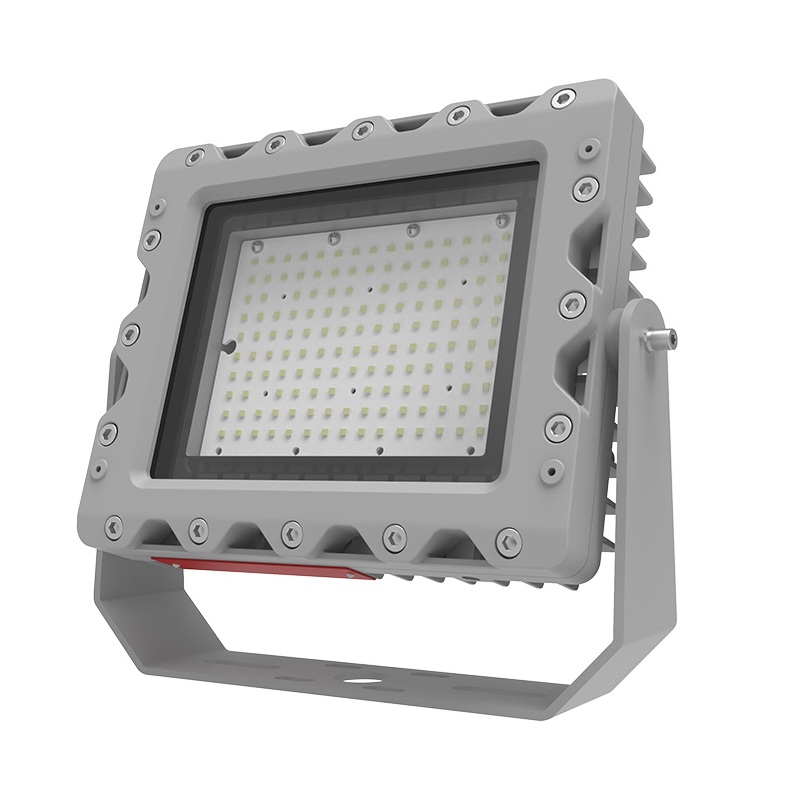

PROAIR™ is a Flood | Highbay fixture | 20W to 200W for applications in classified areas (CID1).
Benefits:
- Universal Voltage: AC100-277, 347-480V (50/60Hz)
- High efficacy up to 160lm/W, Up to 32,000lm
- 7 different optics: 30° / 60° / 90° / 110° / T2 / T3 / T4
- CCT Adjustable (3000K/ 4000K /5000K)
- Wildlife Friendly Amber color options
- 10kV surge protector is standard, 20kV is optional
- Dimming: Standard 1 – 10VDC
- Ambient temperatures -40°C to +65°C
- IP66/67 | IK09 | 5G | NEMA 4X
- Resistant up to 2,000 PSI of hose directed water
- Tested 1000hrs salt spray to standard ASTM”B117-11”
- Lumen Maintenance L70>150,000hours @ 25°C
- 5-year limited system warranty
- Harsh & Hazardous Duty
Specification
| MODEL WATTAGE (EX) | 20W | 40W | 60W | |
| LUMEN OUTPUT | 3,200 LM | 6,400 LM | 9,600 LM | |
| DIMENSIONS | 13.9 x 9.0 x 3.8 in (258 x 214 х 129 mm) | |||
| NET FIXTURE WEIGHT (with SB swivel bracket) | 13.8 lbs (6.3 kg) | |||
| ENCLOSURE MATERIAL | Die cast copper-free aluminum | |||
| FINISH | Baked Powder epoxy/polyester | |||
| HARDWARE AND MOUNTING | Marine grade stainless steel parts and screws | |||
| LENS | Heat, shock and impact resistant clear or diffuse glass lens | |||
| LIGHT SOURCE | High Power LEDs | |||
| COLOR RENDITION INDEX (CRI) | > 70 | |||
| FIXTURE EFFICIENCY | 160 LPW | |||
| LED DRIVER | Inventronics, 120-277 VAC, 50/60Hz, Dimming: Standard 1 – 10VDC | |||
| SURGE PROTECTION | 10kV | |||
| POWER FACTOR | > 0.95 | |||
| THD (total harmonic distortion) | <10% | |||
| AMBIENT OPERATING TEMPERATURE | -40°C to +65°C | -40°C to +65°C | -40°C to +65°C | |
| T-RATING (+55°C) | T6 | T6 | T6 | |
| WARRANTY | 5 Years | |||
| MODEL WATTAGE (EXL) | 80W | 100W | 150W | 200W |
| LUMEN OUTPUT | 12,800 LM | 16,000 LM | 24,000 LM | 32,000 LM |
| DIMENSIONS | 13.6 x 11.8 x 7.8 in (346 x 300 х 197 mm) | |||
| NET FIXTURE WEIGHT (with SB swivel bracket) | 25.4 lbs (11.5 kg) | |||
| ENCLOSURE MATERIAL | Die cast copper-free aluminum | |||
| FINISH | Baked Powder epoxy/polyester | |||
| HARDWARE AND MOUNTING | Marine grade stainless steel parts and screws | |||
| LENS | Heat, shock and impact resistant clear or diffuse glass lens | |||
| LIGHT SOURCE | High Power LEDs | |||
| COLOR RENDITION INDEX (CRI) | > 70 | |||
| FIXTURE EFFICIENCY | 160 LPW | |||
| LED DRIVER | Inventronics, 120-277 VAC, 50/60Hz, Dimming: Standard 1 – 10VDC | |||
| SURGE PROTECTION | 10kV | |||
| POWER FACTOR | > 0.95 | |||
| AMBIENT OPERATING TEMPERATURE | -40°C to +65°C | -40°C to +65°C | -40°C to +65°C | -40°C to +60°C |
| T-RATING (+40°C) | T5 | T5 | T5 | T5 |
| WARRANTY | 5 Years | |||
Step 1 create your own
Ordering Information:
Part number example: PRO-HL-SB-PPC-RV-120-5K-60W-S
Family name
PRO
Enclosure type
EX
EXL
Mounting
SBP
SA
SS
SAB
SSB
WA
WM
CM
PB
PBB
PM
Reflector (lens)
GTG
GFG
Voltage
RV
HV
Secondary optics
110
90
60
30
T2
T3
T4
Color temperature
3K
4K
5K
AM
Wattage
20W
40W
60W
80W
100W
150W
200W
Body color
S
-
+
+
Ordering details
Enclosure type
EX
Explosion Proof Rated Body
EXL
Explosion Proof Extra-Large Body
Mounting
SBP
Swivel Bracket Pendant Mount
SA
Stanchion - 25° 1-1/4“ NPT
SS
Stanchion - 90° 1-1/4“ NPT
SAB
Stanchion - 25° 1-1/2“ NPT
SSB
Stanchion - 90° 1-1/2“ NPT
WA
Wall Mount - 25° 3/4" NPT
WM
Wall Mount - 90° 3/4" NPT
CM
Ceiling Mount - 3/4'' NPT
PB
Pole clamp (M8*48mm) for Round pole φ 1-7/8'' (48mm)
PBB
Pole clamp (M8*60mm) for Round pole φ 2-3/8'' (60mm)
PM
Pendant Mount
Reflector (lens)
GTG
Transparent glass
GFG
Frosted glass
Voltage
RV
120-277 VAC
HV
347-480 VAC
Secondary optics
110
110°
90
90°
60
60°
30
30°
T2
see datasheet
T3
see datasheet
T4
see datasheet
Color temperature
3K
3000K (Soft white)
4K
4000K (Neutral white)
5K
5000K (Cool white)
AM
Amber
Wattage
20W
40W
60W
80W*
100W*
150W*
200W*
Body color
S
Silver (Standard)
* – only available in EXL body
Available Accessories (per request):
- WGS – Wire Guard
- SC2 – Safety Cable
- VS2 – Dark Sky Visor
- SP2R – 20KV Surge Protector (100-277V)
- SP2H – 20KV Surge Protector (347-480V)
Applications
- Oil and Gas refineries, drilling rigs on and offshore
- Any CID1 application, classified and hazardous
- Locations requiring continuous and consistent light levels in extreme heat or cold.
- Explosion Proof and Hazardous Highbay aplications
- Marine, wet, corrosize environments
- Manufacturing
- Wastewater
Documents
2d pdf, 2d dwg, 3d step
Compliance & certification
ETL/CETL Certified to:
UL 844 Hazardous Locations
Class I Division 1, Groups B, C, D
Class I Division 2, Groups A, B, C, D
Class II Division 1, Groups E，F, G
Class II Division 2, Groups F, G
Class III
Class I, Zone 1, Group IIB+H2
Class I, Zone 2, Group IIC
Zone 21, Zone 22
Class I Division 1, Groups B, C, D
Class I Division 2, Groups A, B, C, D
Class II Division 1, Groups E，F, G
Class II Division 2, Groups F, G
Class III
Class I, Zone 1, Group IIB+H2
Class I, Zone 2, Group IIC
Zone 21, Zone 22
Approved for:
UL 1598 Wet Locations
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137-M1981
CSA C22.2 NO. 250.0
UL 1598A Marine Outside Type (Salt Water)
UL 8750 LED Safety
CSA C22.2 No.137-M1981
CSA C22.2 NO. 250.0
