Lineair™ for IL

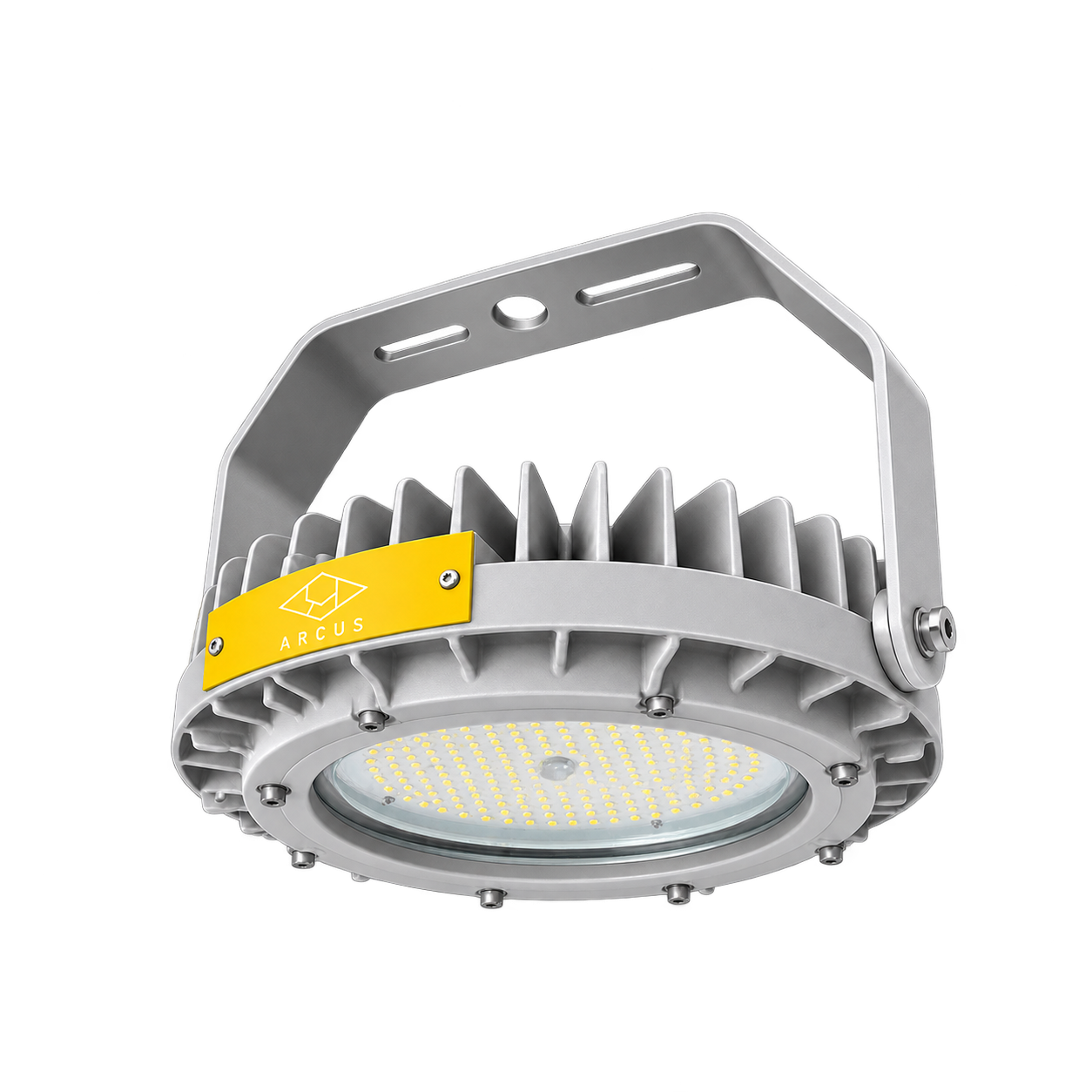

Industrial Locations LINEAIR™ is a low-profile and lightweight linear light fixture.
Prev
Next
Case studies
Benefits:
- Try before buy program
- Instant on/no warm up
- Extreme compact size and weight
- Energy-efficient/up to 65% savings when compared to traditional HID lighting
- Operating ambient -40°C to +80°C and +65°C (200W)
- 5 year warranty
- High CRI (Ra>70) for improved visability and clarity
- Lumen Maintenance: L70 > 150,000 hours @ 25°C
Specification
| MODEL WATTAGE | 40W | 60W | 80W | 100W | 150W | 200W |
| LUMEN OUTPUT | 10900LM | 10900LM | 13300LM | 18000LM | 21500LM | 24000LM |
| DIMENSIONS | 333 x 99 mm (13.11 x 3.9 in) | |||||
| NET FIXTURE WEIGHT | 4.7kg ( 10.36 lbs ) | |||||
| ENCLOSURE MATERIAL | Copper free aluminum alloy | |||||
| FINISH | Polyester powder coat finish | |||||
| HARDWARE AND MOUNTING | Marine grade stainless steel parts and screws | |||||
| LENS | Tempered clear borosilicate glass | |||||
| COLOR RENDITION INDEX (CRI) | Ra> 70 | |||||
| FIXTURE EFFICIENCY | 150 LPW | 157 LPW | 152 LPW | 152 LPW | 152 LPW | 158 LPW |
| SURGE PROTECTION | 6 kV (standard) | 6 kV (standard) | 6 kV (standard) | 6 kV (standard) | 6 kV (standard) | 6 kV |
| POWER FACTOR | > 0.95 | |||||
| THD (total harmonic distortion) | <10% | <10% | <10% | <10% | <10% | <10% |
| AMBIENT OPERATING TEMPERATURE | -40°C to +80°C | -40°C to +80°C | -40°C to +80°C | -40°C to +80°C | -40°C to +80°C | -40°C to +65°C |
| T-RATING for (+55°C) | Т6 | Т6 | Т6 | T5 | T5 | T5 |
| FIXTURE LIFE (+25°C) | 150 000 hours | |||||
| WARRANTY | 5 Years | |||||
| * – measurement tolerance +/- 10% | ||||||
Step 1 create your own
Ordering Information:
Part number example: PRO-HL-SB-PPC-RV-120-5K-60W-S
Family name
XAR
Enclosure type
HL
Mounting
PM
SBР
SS
SSB
SA
SAB
WM
WA
CJM
Reflector (lens)
TG
FG
Voltage
RV
HV
Secondary optics
110
Color temperature
3K
4K
5K
Wattage
40W
60W
80W
100W
150W
200W
Body color
S
-
+
+
Ordering details
Enclosure type
HL
Hazardous Location Rated Body
Mounting
PM
Pendant Mount (3/4“ NPT)
SBР
Swivel Bracket Pendant
SS
Stanchion Mount Straight 90˚ (1-1/4“ NPT)
SSB
Stanchion Mount Straight 90˚ (1-1/2“ NPT)
SA
Stanchion Mount 25˚ Angled (1-1/4“ NPT)
SAB
Stanchion Mount 25˚ Angled (1-1/2“ NPT)
WM
Wall Mount Straight 90˚
WA
Wall Mount 25˚ Angled
CJM
Ceiling Junction Box
Reflector (lens)
TG
Clear glass
FG
Frosted glass
Voltage
RV
120-277 VAC, 50/60 Hz
HV
347-480 VAC, 50/60 Hz
Secondary optics
110
Full Flood (No Optics - Standard)
Color temperature
3K
3000K
4K
4000K
5K
5000K
Wattage
40W
60W
80W
100W
150W
200W
Body color
S
Silver (Standard)
Accessories:
SC1 – Stainless steel safety cable Φ8 (4mm)
PBC48 – Pipe clamp (M8*48mm) for pole Ø 1-7/8”
PBC60 – Pipe clamp (M8*60mm) for pole Ø 2-3/8‘’
CAB – 3′ SEOOW-18/3 Cord (Factory installed) Applicable to C1D2
CGL – Cable gland 3/4″ NPT Suitable for C1D2
PS – Pole stanchion 2-3/8“ (60mm)
SB1 – Swivel bracket 3/4“ NPT
Applications
- Mid-Bay and High-Bay Lighting
- Hazardous Locations
- Locations requiring continuous and consistent light levels in extreme heat or cold
- Hazardous Materials Storages
- Marine, Engine and Battery Rooms
- Energy, Gas & Oil
- Manufacturing
- Wastewater
Documents
2d pdf, 2d dwg, 3d step
Compliance & certification
ETL/CETL Certified to:
UL 844 for Use in Hazardous (Classified) Locations
UL 1598 Suitable for Wet Locations
UL 1598A Marine Outside Type (Saltwater)
CSA C22.2 No. 250.0
CSA C22.2 No. 137
IP67 rated per IEC 60598-1 | -40°C to +65°C
UL 1598 Suitable for Wet Locations
UL 1598A Marine Outside Type (Saltwater)
CSA C22.2 No. 250.0
CSA C22.2 No. 137
IP67 rated per IEC 60598-1 | -40°C to +65°C
Approved for:
Class I Division 2 Groups A, B, C, D
Class I Zone 2 Group IIC
Class II Division 1 and 2 Groups E, F, G
Class II Zone 20, 21, or 22 Group IIB
Class III
1Ex d IIC T5/Т6 | -40°C to +65°C
Class I Zone 2 Group IIC
Class II Division 1 and 2 Groups E, F, G
Class II Zone 20, 21, or 22 Group IIB
Class III
1Ex d IIC T5/Т6 | -40°C to +65°C
Similar products
Morion™ for EX
Explosion Proof. MORION™ is high performance, extremely efficient, easy to install and versatile for explosion proof locations with quick connect technologies.
