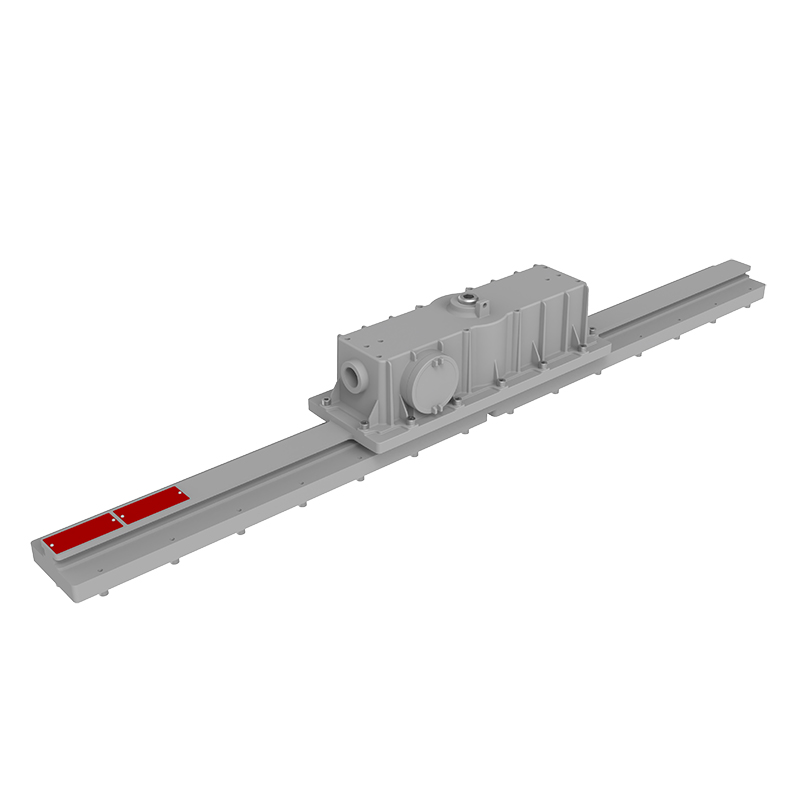

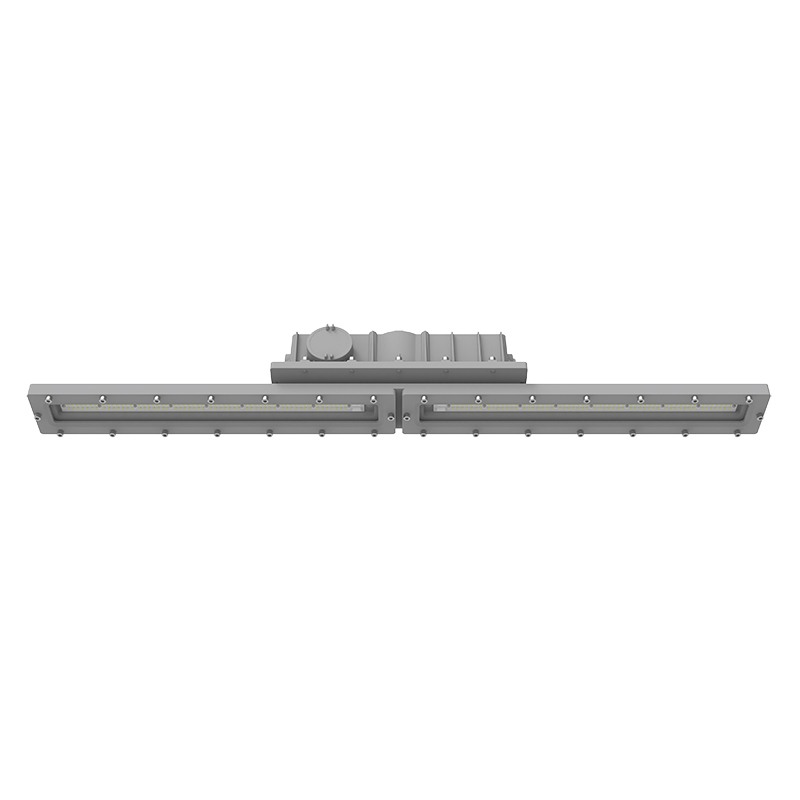

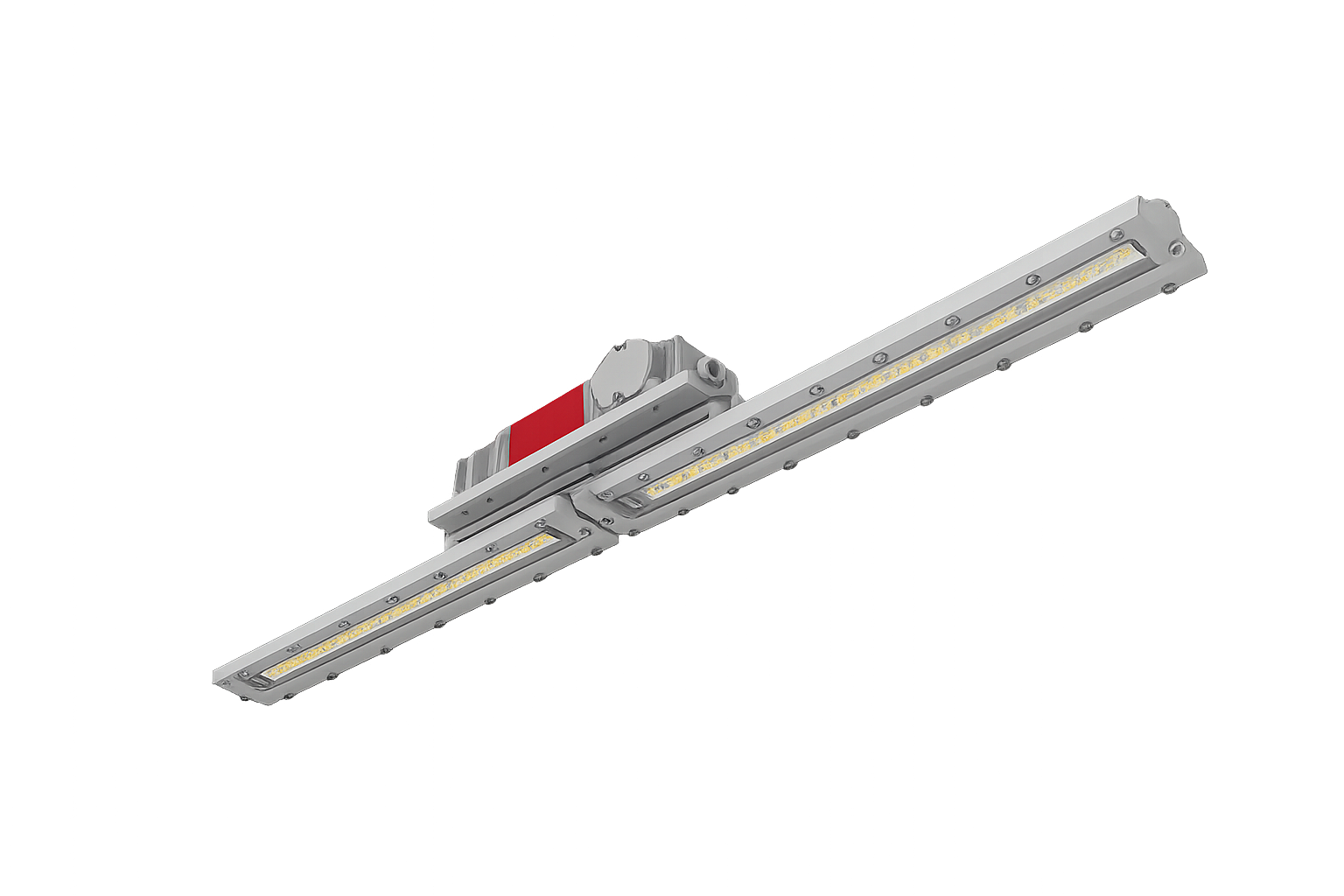

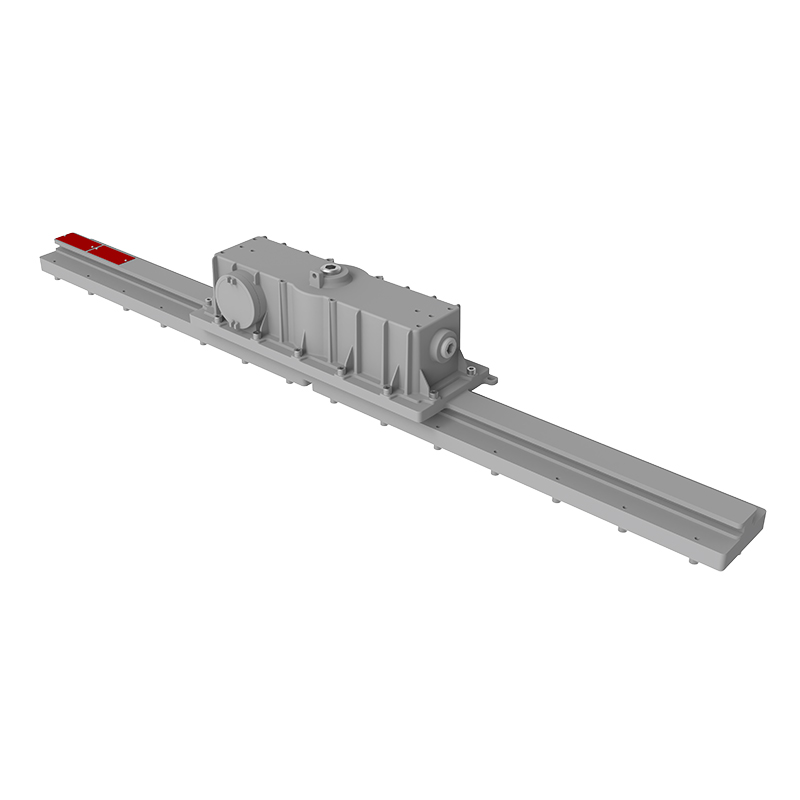

Explosion Proof LINEAIR™ is a low-profile and lightweight linear light. Convenient wiring access through screw-cap cover with toolless, cage clamp terminal block.
Benefits:
Standard Features:
- Low-profile, lightweight design
- Convenient wiring access through screw-cap cover with toolless, cage clamp terminal block
- Self-contained emergency battery backup, no additional junction box required
- Heavy-duty, 7/16″ thick die-cast safety cable attachment points
- Replaceable LED circuit boards and drivers with quick disconnects
- Adjustable mounting bracket with 90 degree range of motion and 13 locking positions (Not included. Must be ordered separately.)
Additional Features:
- Supplemental 10kV surge protection
- Central safety cable attachment points for increased safety/reduced range of motion
- Feed-through and pendant mount capable
- Diffused lens option
- 5-year warranty
Specification
| MODEL WATTAGE | 30W | 38W | 45W | 54W | 75W | 90W |
| LUMEN OUTPUT | 3 806 LM | 4 794 LM | 6 139 LM | 7 291 LM | 9 290 LM | 12 253 LM |
| FIXTURE LENGTH | 2 FT | 4 FT | ||||
| AMBIENT TEMPERATURE | -40°C to +55°C | -40°C to +60°C | ||||
| FIXTURE EFFICIENCY | 129 LPW | 128 LPW | 135 LPW | 134 LPW | 130 LPW | 140 LPW |
| COLOR TEMPERATURE (CCT) | 4 084 | 4 095 | 4 091 | 4 167 | 4 180 | 4 120 |
| OPERATING VOLTAGE | RV 120-277 V, 50/60 Hz HV 347/480 V, 60 Hz | |||||
| CRI | 82 | |||||
| T-RATING | T6 | |||||
| BODY | A360 Aluminum (less than .4% copper content) with baked-on gray epoxy finish | |||||
| GASKETS | One-piece neoprene | |||||
| LENS | Tempered glass | |||||
| HARDWARE | Stainless steel | |||||
| WARRANTY | 5 Years | |||||
| Provided by AZZ | ||||||
Step 1 create your own
Ordering Information:
Part number example: PRO-HL-SB-PPC-RV-120-5K-60W-S
Family name
LIN
Enclosure type
EX
Mounting
SB
Reflector (lens)
C
D
Voltage
RV
HV
Battery backup
BB
N
Color temperature
4K
Wattage
30W
38W
45W
54W
75W
90W
Body color
S
-
+
+
Ordering details
Enclosure type
EX
Explosion Proof Rated Body
Mounting
SB
Swivel Bracket
Reflector (lens)
C
Clear
D
Diffused
Voltage
RV
120-277 VAC, 50/60 Hz
HV
347-480 VAC, 50/60 Hz
Battery backup
BB
Emergency battery backup (not available with 347/480V)
N
None
Color temperature
4K
4000 K
Wattage
30W
38W
45W
54W
75W
90W
Body color
S
Silver (Standard)
Applications
- PAINT SPRAY BOOTH
- TUNNELS AND UNDERGROUND EXCAVATIONS
- EXPLOSION PROOF LOCATIONS
- CHEMICAL STORAGE ROOMS
- ENERGY, GAS & OIL
Compliance & certification
ETL/CETL Certified to:
UL 844 Hazardous Locations
UL 924 Emergency Lighting
UL 1598A Marine Outside Type
UL 1598 Wet Locations
UL 8750 LED Safety
IEC/ATEX
CSA C22.2 No. 250.0–08
CSA C22.2 No. 137–M1981
NEMA 4X, 7CD
IP66
Emergency Battery Backup
-40°C to 65°C Ambient Temperature
Tested to LM79 and LM80
DLC Listed LED
UL 924 Emergency Lighting
UL 1598A Marine Outside Type
UL 1598 Wet Locations
UL 8750 LED Safety
IEC/ATEX
CSA C22.2 No. 250.0–08
CSA C22.2 No. 137–M1981
NEMA 4X, 7CD
IP66
Emergency Battery Backup
-40°C to 65°C Ambient Temperature
Tested to LM79 and LM80
DLC Listed LED
Approved for:
Class I, Division 1, Groups C & D
Class I, Division 2, Groups C & D
Class I, Division 2, Groups C & D
